Payne · Heat Pump

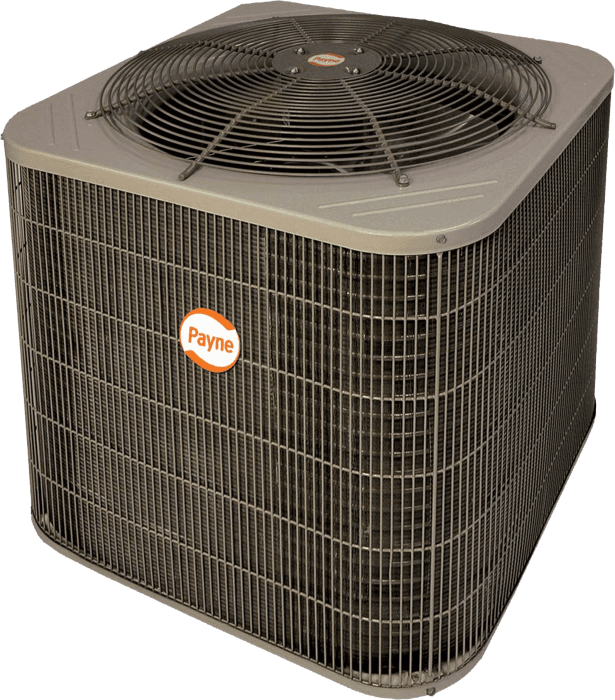

Payne PH5SAN5

The Payne PH5SAN5 is a single-stage heat pump built for Toronto homeowners who want reliable year-round heating and cooling without paying for high-end staging. It runs up to 16.5 SEER2 cooling and 8.1 HSPF2 heating on the newer low-GWP R-454B refrigerant, and Megacity HVAC sizes and installs it across the GTA from our East York shop. As an Authorized Lennox Dealer and TSSA-certified company in business since 1999, we'll tell you straight whether this entry-level unit is the right fit for your house.

up to 16.5SEER2

(416) 286-5665 Get a Quote

Customer Reviews·

5.0 / 5.0 · 104+ Google reviews

Reviews on Google Reviews on HomeStars

Why Toronto Homeowners Choose the Payne PH5SAN5

Single-stage scroll compressor keeps the design simple and the upfront cost down while still delivering up to 16.5 SEER2 cooling

Runs on R-454B, a lower-GWP refrigerant, so you're not buying into a system built around an older refrigerant being phased out

Up to 8.1 HSPF2 means it pulls real heat from outdoor air, not just resistance backup, through most of the Toronto shoulder seasons

Sound levels as low as 70 dB and a 10-year limited parts warranty when you register the unit after install

A Good Fit If

Homeowners on a tighter budget who still want a single system that both heats and cools

Smaller to mid-size Toronto homes (the lineup covers 1.5 to 5 tons) where simple single-stage operation is enough

People replacing an old AC and wanting to add electric heating without a premium two-stage or variable-speed unit

Owners who'd rather pair the heat pump with their existing furnace as a backup for the coldest stretches

Manufacturer Specs

Model: PH5SAN5
Cooling efficiency: Up to 16.5 SEER2
Heating efficiency: Up to 8.1 HSPF2
Cooling stage: Single-stage scroll
Sound level: As low as 70 dB
Refrigerant: R-454B (low-GWP)
Sizes: 1.5 – 5 tons
Parts warranty: 10-year limited (with registration)

Get a Quote

Specs published by Payne.

Brands We Install

We Install & Service Every Major Brand

Authorized Lennox Dealer — and fully equipped to install, repair, and maintain every major HVAC brand sold in Ontario.

Down

Trusted Partner

Lease-to-Own Through Enbridge Sustain

Get a new furnace, AC, heat pump, or water heater installed with nothing down. As a certified Enbridge Sustain Trusted Partner, we make a new system affordable from day one.

No upfront cost — $0 down on approved credit
Maintenance and repairs included for the term
Predictable, manageable monthly payments

See Financing Options

Common Questions

Payne PH5SAN5 — FAQ

Will a single-stage heat pump like the PH5SAN5 keep my house warm through a Toronto winter?

It carries most of the heating load through fall and spring on its own, and it's rated up to 8.1 HSPF2. For the coldest deep-winter stretches we typically set it up in a dual-fuel pairing with your furnace, so the furnace takes over when temperatures drop below the point where the heat pump runs efficiently. We'll spec the changeover during the site visit.

What size PH5SAN5 do I need?

The lineup runs from 1.5 to 5 tons. The right size depends on your home's square footage, insulation, windows and ductwork, not just the old unit's rating. We do a proper heat-loss/heat-gain load calculation before quoting, because an oversized heat pump short-cycles and an undersized one runs constantly.

Is this heat pump eligible for an Ontario rebate?

Heat pumps can qualify under Ontario's current Home Renovation Savings program, unlike standard furnaces and ACs. Eligibility depends on the program rules and your home, and the rebate has to be applied for through a contractor registered with the program. We'll confirm whether the PH5SAN5 and your setup qualify before you commit.

What does the warranty cover?

The PH5SAN5 carries a 10-year limited parts warranty, but only when the unit is registered after installation. We handle the registration as part of our install so the full coverage stays in place. Labour is separate from the parts warranty, and we'll go over those details with your quote.
